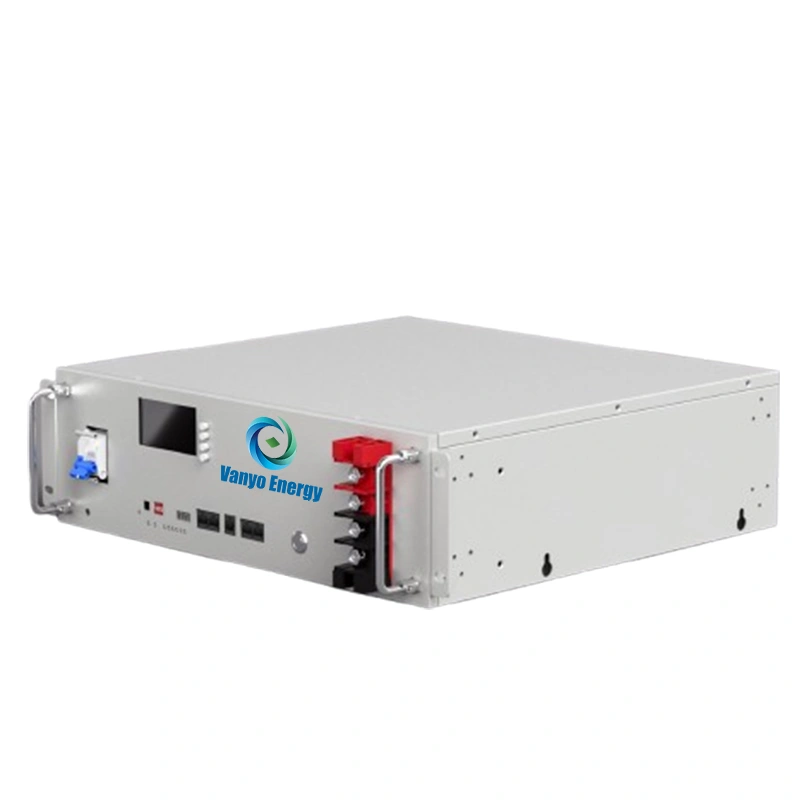

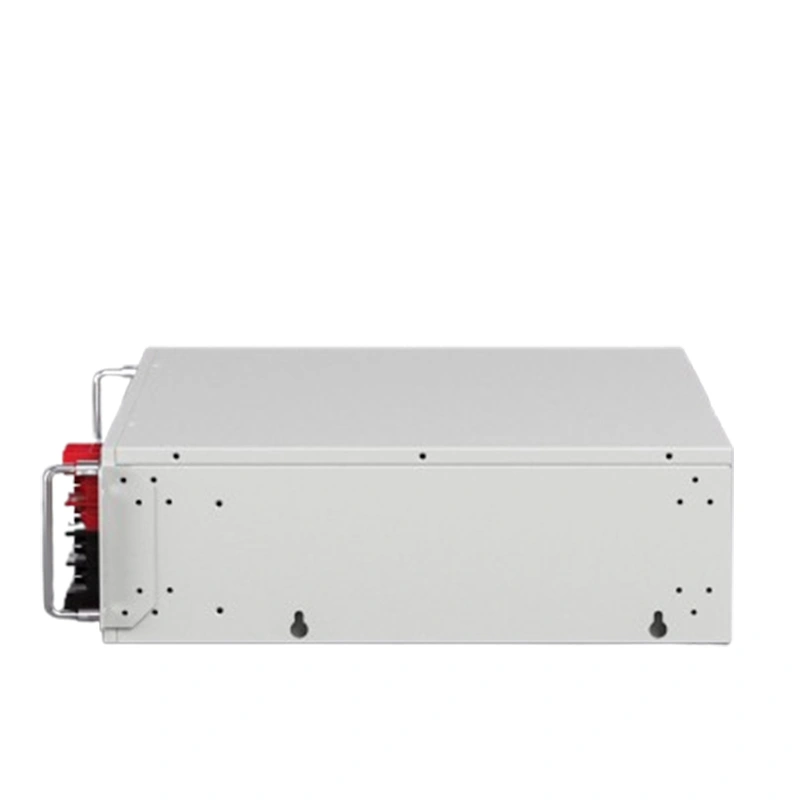

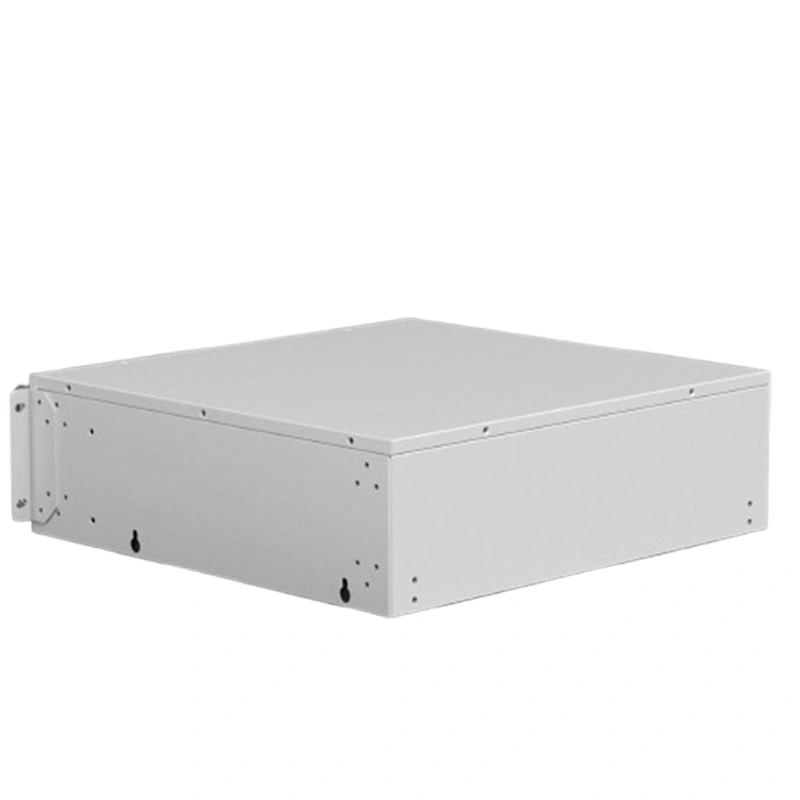

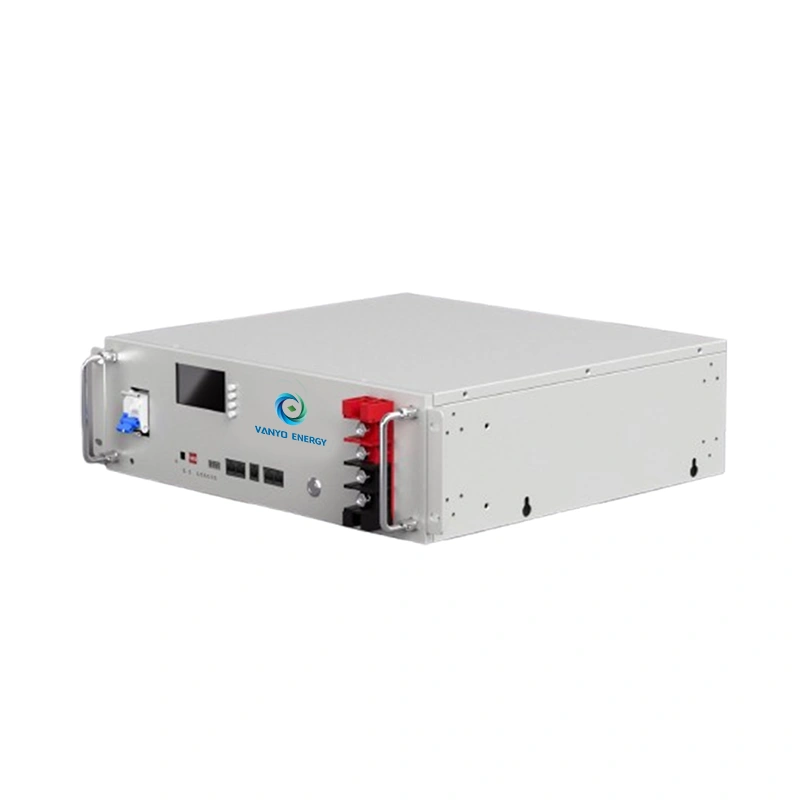

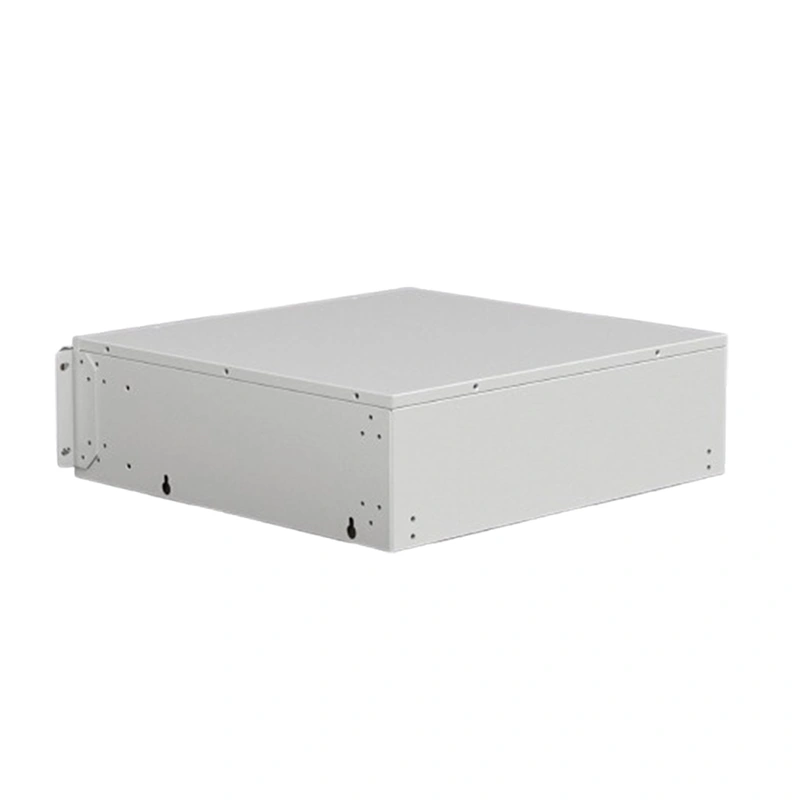

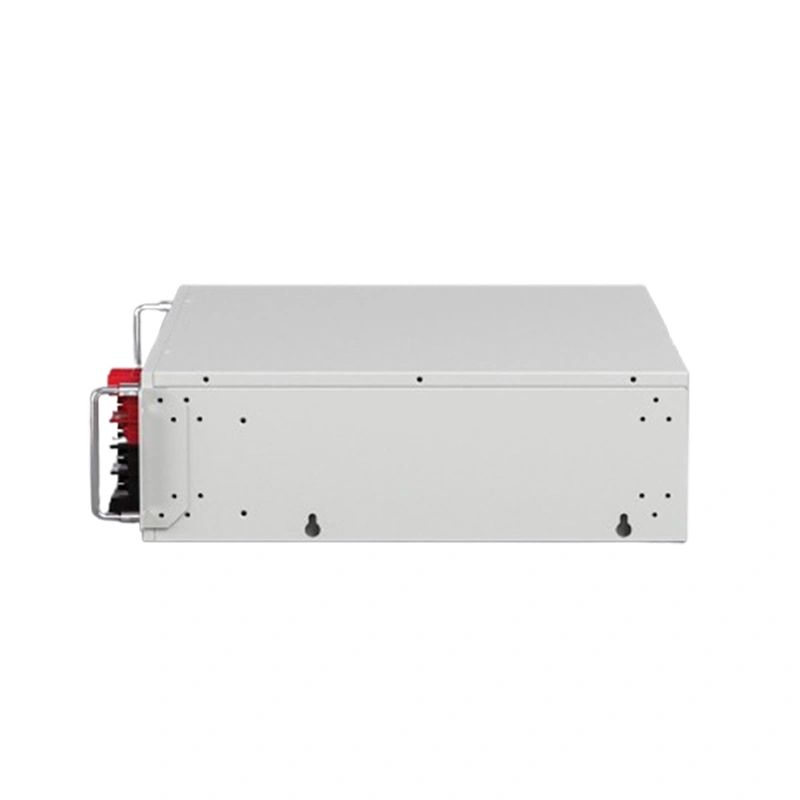

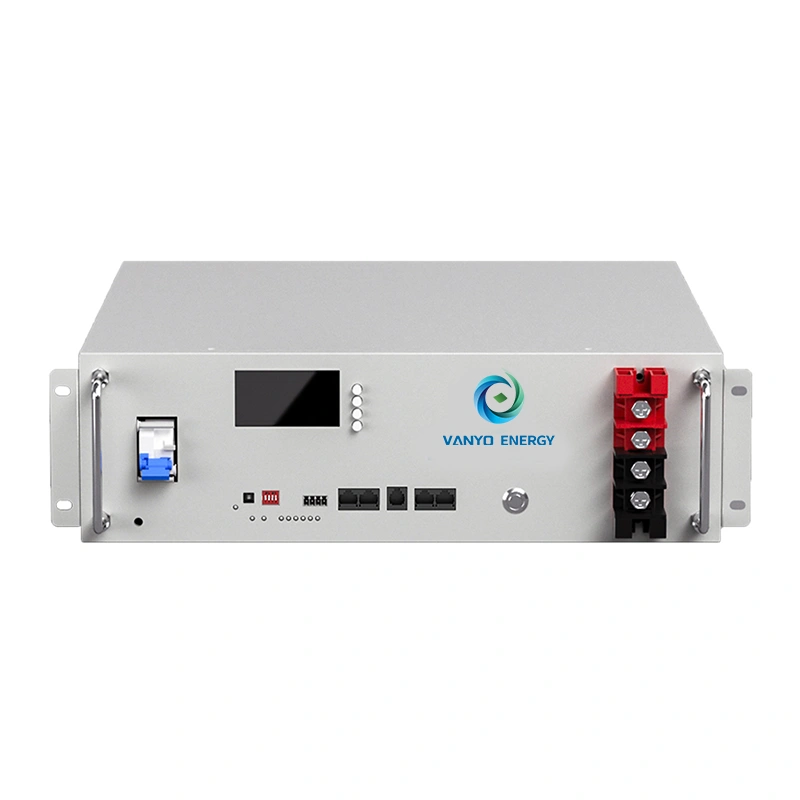

Wholesale 3U Low Voltage Storage
Battery Model：
WY-51.2-100AH (3U)
Nominal Voltage：
51.2V
Charge Voltage：
57.6V
Weight (KG)：
44.00
Dimenison(mm)：
442*420*133.5
Product Features
- Convenient - Quick installation, standard of 19-inch embedded designed module is comfortable for installationand maintenance.
- Eco-Friendly - The whole module is non-toxic, non-polluting and environmentally friendly.
- Intelligent BMS - It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature.The system can automatically manage charge and discharge state and balance current and voltage of each cell.
- Safe and Reliable - Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
- Flexible Configuration - Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade,wifi upgrade(optional), remote upgrade(Compatible with Deye inverter).
- Wide Temperature - Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.
| Model | WY-51.2-100AH (3U) | WY102.4V-100AH (3U) | WY-204.8V-100AH (3U) | WY-307.2V-100AH (3U) | WY-409.6V-100AH (3U) | WY512V-100AH (3U) | WY-614.4V-100AH (3U) | |
| Nominal Voltage | 51.2V | 102.4V | 204.8V | 307.2V | 409.6V | 512V | 614.4V | |
| Nominal Capacity | 100AH | 100AH | 100AH | 100AH | 100AH | 100AH | 100AH | |
| Nominal Energy |
5.12KWH |
10.24KWh |
20.48KWh |
30.72 KWh |
40.96KWh |
51.2KWh |
61.4KWh |
|
| Max. Voltage Range |
43.2V-57.6V |
86.4V-114.4V |
172.8V-230.4V |
259.2V-345.6V |
345.6V-460.8V |
432V-576V |
518.4V-691.2V |
|
| Charge Voltage |
57.6V |
114.4V |
230.4V |
345.6V |
460.8V |
576V |
69 1.2V |
|
| Undervoltage Protection |
43.2V |
86.4V |
172.8V |
259.2V |
345.6V |
432V |
518.4V |
|
| Recommend Charge Current | 50A | 50A | 50A | 50A | 50A | 50A | 50A | |
| Max. Discharge Current | 100A | 100A | 100A | 100A | 100A | 100A | 100A | |
| Communication | RS485 /CAN | RS485 /CAN | RS485 /CAN | RS485 /CAN | RS485 /CAN | RS485 /CAN | RS485 /CAN | |
| IP Rating | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | |
| Cycle Life | ≥6000 cycles | ≥6000 cycles | ≥6000 cycles | ≥6000 cycles | ≥6000 cycles | ≥6000 cycles | ≥6000 cycles | |
| Net Weight | ~40kg | ~100kg | ~180kg | ~260kg | ~340kg | ~420kg | ~240kg ~260kg | |
| Dimensions (L*W*H)mm |
442*420*133.5 | 442*420*537 | 442*420*834 |
442*420*1131 |
442*420*1482 |
442*420*1725 |
442*420*904 442*420*1134 |
|
| Cell Type | Lithium-Iron Phosphate (LiFePO) | Lithium-Iron Phosphate (LiFePO) | Lithium-Iron Phosphate (LiFePO) | Lithium-Iron Phosphate (LiFePO) | Lithium-Iron Phosphate (LiFePO) | Lithium-Iron Phosphate (LiFePO) | Lithium-Iron Phosphate (LiFePO) | |
| Design Life | 15 Years | 15 Years | 15 Years | 15 Years | 15 Years | 15 Years | 15 Years | |
| Charging Temperature | 0~65°C | 0~65°C | 0~65°C | 0~65°C | 0~65°C | 0~65°C | 0~65°C | |
| Discharging Temperature | -20~65°C | -20~65°C | -20~65°C | -20~65°C | -20~65°C | -20~65°C | -20~65°C | |
| Relative Humidity | 5%~90%, No Condensation | 5%~90%, No Condensation | 5%~90%, No Condensation | 5%~90%, No Condensation | 5%~90%, No Condensation | 5%~90%, No Condensation | 5%~90%, No Condensation | |
| Install Altitude | ≤3000 m | ≤3000 m | ≤3000 m | ≤3000 m | ≤3000 m | ≤3000 m | ≤3000 m | |
| Install Location | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | |
| Installation | Stack/ Rack mounted | Stack/ Rack mounted | Stack/ Rack mounted | Stack/ Rack mounted | Stack/ Rack mounted | Stack/ Rack mounted | Stack/ Rack mounted | |
| Certification | IEC62619 / UN38.3 / CE / CEC | IEC62619 / UN38.3 / CE / CEC | IEC62619 / UN38.3 / CE / CEC | IEC62619 / UN38.3 / CE / CEC | IEC62619 / UN38.3 / CE / CEC | IEC62619 / UN38.3 / CE / CEC | IEC62619 / UN38.3 / CE / CEC | |
100AH Stackable Low Voltage System Application
The 100AH Stackable Low Voltage System is a versatile and scalable energy storage solution ideal for a wide range of applications, including small retail shops, small-scale wind-solar hybrid projects, backup power for data communication equipment, multi-story residential buildings, and mobile power supply for vehicles and lighting systems. Its modular design allows for flexible capacity expansion, ensuring a reliable and efficient power supply in both off-grid and grid-tied scenarios. With high energy density and stable performance, it provides sustainable power support for commercial, residential, and mobile applications.
Multi-Family Housing / Small Community
Shops, Clinics, Classrooms
Backup For Telecom
Small Wind-Solar Hybrid Systems
Mobile Power Vehicles
Factory Real Product Photos
Container Energy Storage
Energy Storage Converter
Battery
Packaging Information
After multiple tests before leaving the factory, it is sent to all parts of the world.
Energy Storage System FAQ
Q1: Are you a manufacturer or trader of batteries/energy storage systems?
A: We are a manufacturer specializing in batteries/energy storage systems.
Q2: Do you provide system integration, EMS/energy management software, and ongoing upgrades and platform support?
A: We can provide system integration, EMS/energy management software, ongoing upgrades and platform support, as well as technical training.
Q3: How Long Is The Warranty?
A: Our warranty is from 5 years.
Q4: How Can We Guarantee Quality?
A: Always a pre-production sample before mass production; Always a final inspection before shipment.
Q5: How are payment methods, credit terms, and contract terms (division of liability, compensation for delayed delivery, force majeure) typically agreed upon?
A: You can discuss this with us in detail. We accept payment methods such as TT/LC/PayPal/DP/DA etc.
