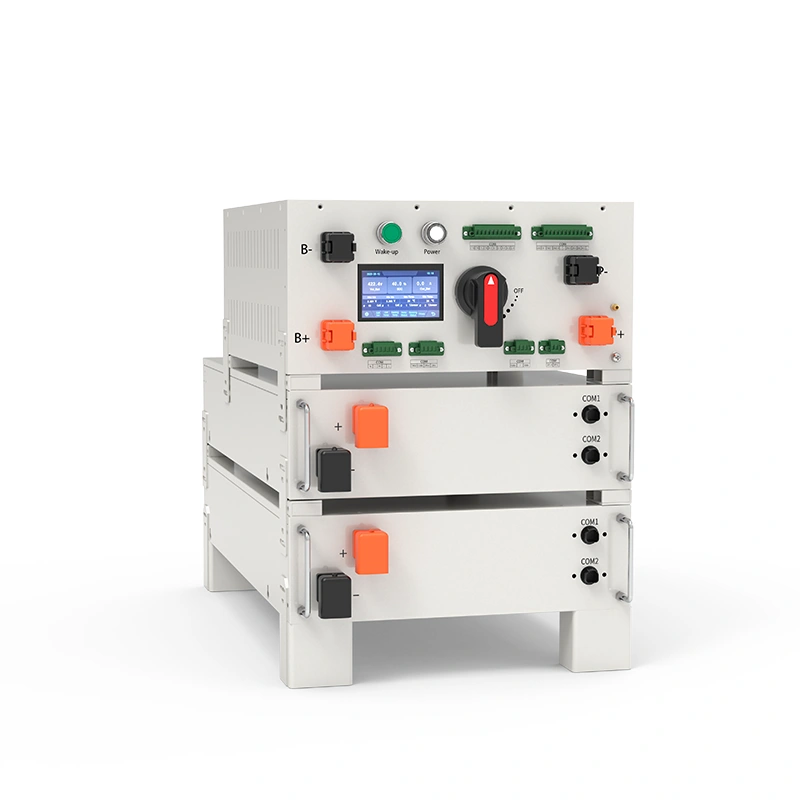

102.4V 200Ah 20kWh High Voltage LiFePO4 System.web

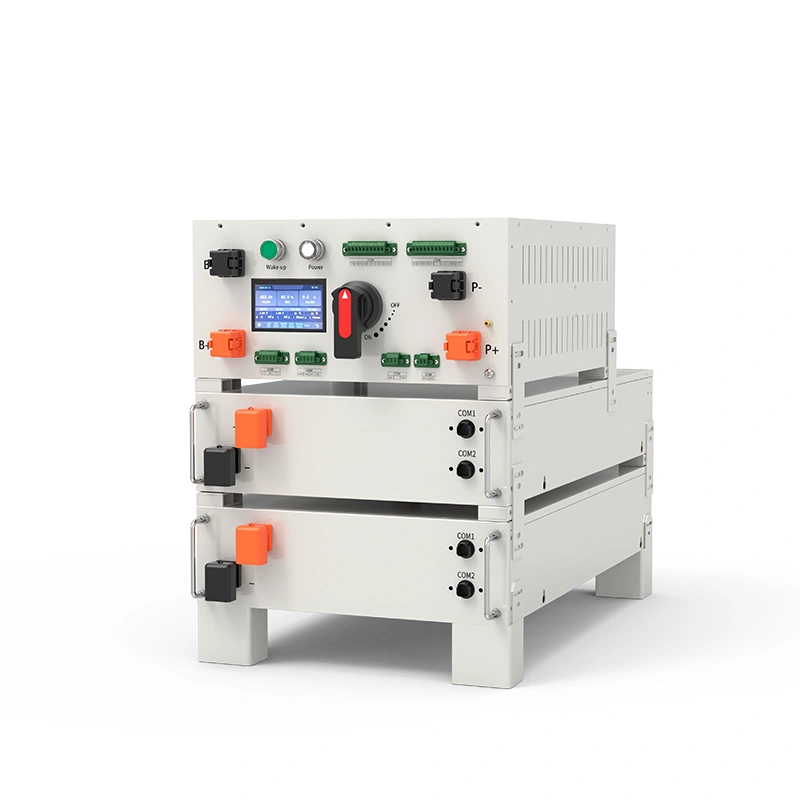

102.4V 200Ah 20kWh High Voltage System 45 Degree F

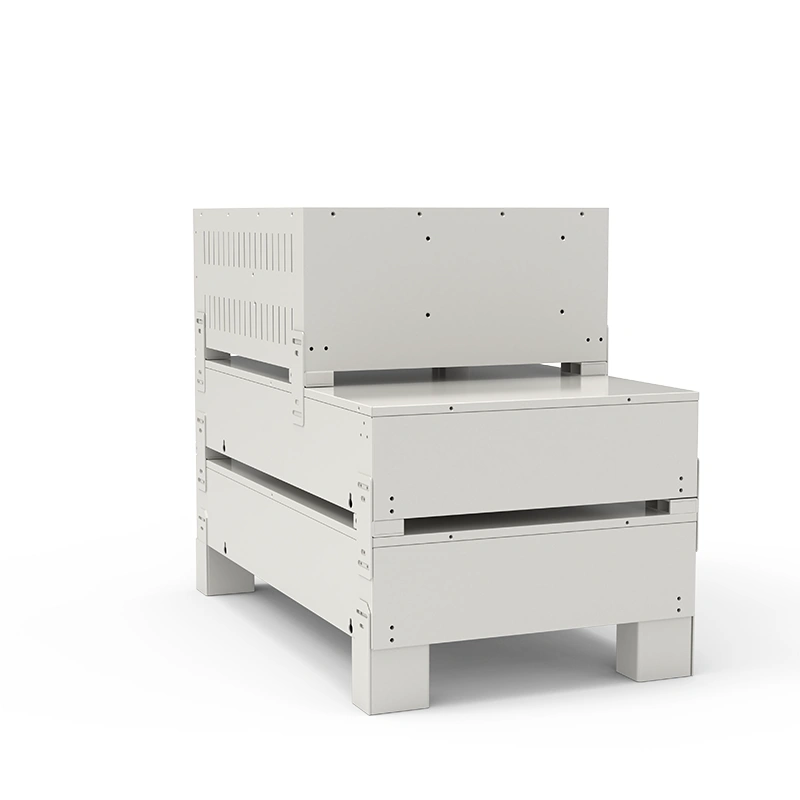

102.4V 200Ah 20kWh High Voltage System Back View.w

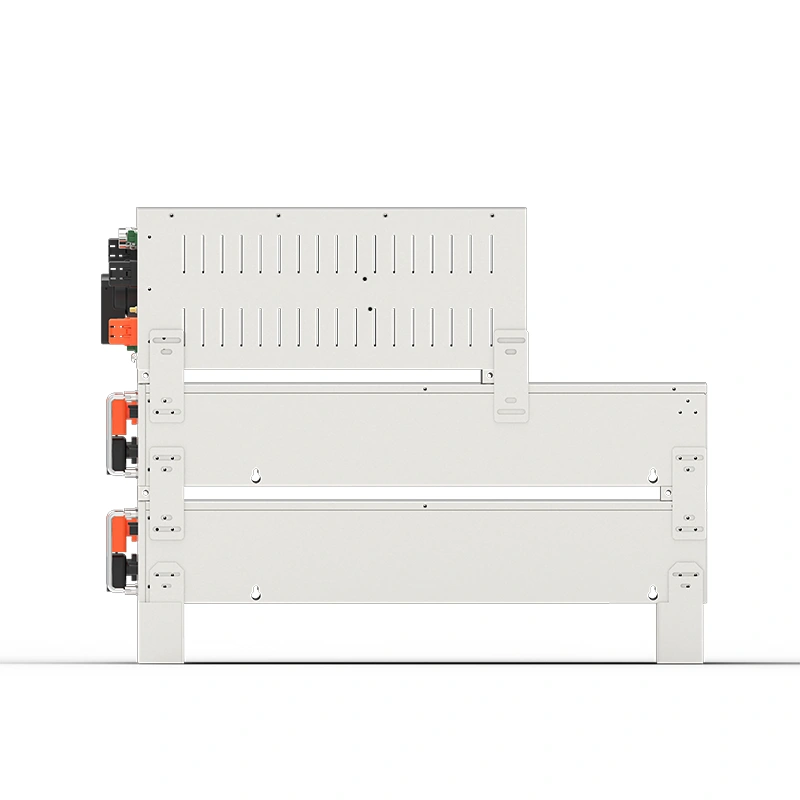

102.4V 200Ah 20kWh High Voltage System Side View.w

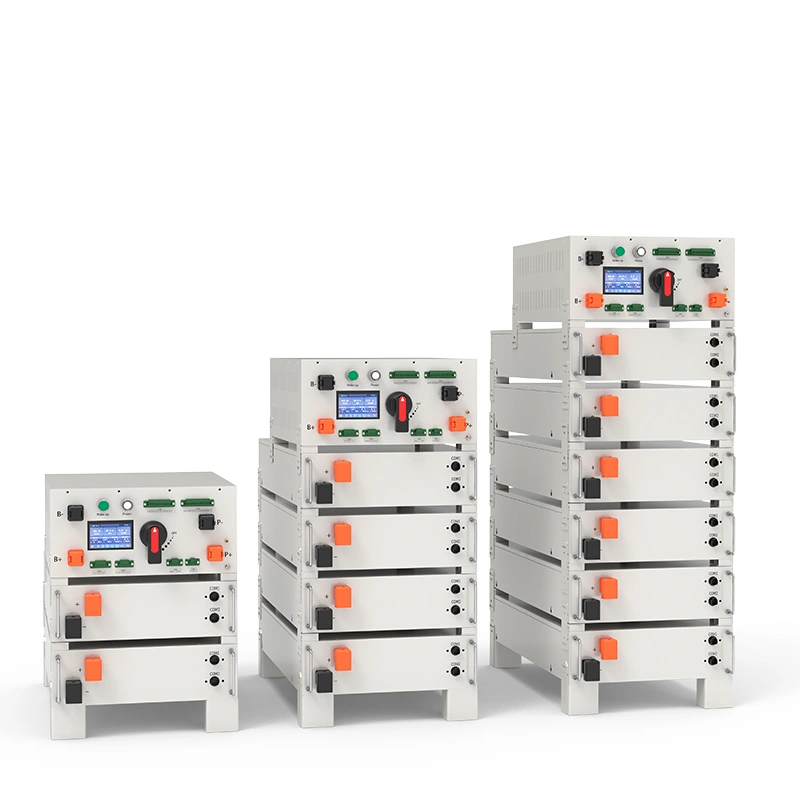

Customizable 3U High-Voltage Stackable Battery Sys

102.4V 200AH Stackable High Voltage System

High-Voltage Stacked Li-ion Energy Storage Battery delivers exceptional power density and scalability for demanding energy storage applications. Utilizing advanced lithium-ion technology in a unique high-voltage stacking architecture, our solution achieves superior efficiency(up to 1000V) and reduced system complexity.

Battery Model：

WY102.4V-200AH(3U)

Nominal Voltage：

102.4V

Nominal Current：

200A

Nominal Energy：

20.48WH

Weight (KG)：

201

Dimenison(mm)：

442*420*597

+86 13642754138

Whatsapp: +86 13642754138

info@vanyoenergy.com

Inquiry Now

Product Features

Convenience - Quick installation, standard 19-inch embedded design module, comfortable installation and maintenance.
Environmentally Friendly - The entire module is non-toxic, pollution-free, and environmentally friendly.
Safe and Reliable - Cathode material is made of LiFeP04, which has safety performance and long cycle life. It can last up to 6 months without charging and has no memory effect. It has excellent shallow charging and discharging performance.
Flexible Configuration - Multiple battery modules can be connected in parallel to expand capacity and power. Support USB upgrade, WiFi upgrade (optional), remote upgrade (compatible with DeYe inverter).
Intelligent BMS - It has protection functions such as over-discharge, over-charge, over-current, and over-high or low temperature. The system can automatically manage the charge and discharge states and balance the current and voltage of each cell.
Wide Temperature Range - The working temperature range is -20°C to 55°C, with excellent discharge performance and cycle life.

Product Models

Model	WY-51.2V 200AH(3U)	WY-102.4V 200AH(3U)	WY-204.8V 200AH(3U)	WY-307.2V 200AH(3U)	WY-409.6V 200AH(3U)	WY-512V 200AH(3U)	WY-614.4V 200AH(3U)
Nominal Voltage	51.2V	102.4V	204.8V	307.2V	409.6V	512V	614.4V
Nominal Capacity	200AH	200AH	200AH	200AH	200AH	200AH	200AH
Nominal Energy	10.24KWH	20.48KWH	40.9KWH	61.4KWH	81.9KWH	102.4KWH	112.8KWH
Max. Voltage Range	43.2V ~ 57.6V	86.4V ~ 115.2V	172.8V ~ 230.4V	259.2V ~ 345.6V	345.6V ~ 460.8V	432V ~ 576V	518.4V ~ 691.2V
Charge Voltage	57.6V	115.2V	230.4V	345.6V	460.8V	576V	691.2V
Undervoltage Protection	43.2V	86.4V	172.8V	259.2V	345.6V	432V	518.4V
Recommend Charge Current	100A	100A	100A	100A	100A	100A	100A
Recommend Discharge Current	100A	100A	100A	100A	100A	100A	100A
Max. Discharge Current	200A	200A	200A	200A	200A	200A	200A
Communication	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN
IP Rating	IP20	IP20	IP20	IP20	IP20	IP20	IP20
Cycle Life	≥6000 cycles	≥6000 cycles	≥6000 cycles	≥6000 cycles	≥6000 cycles	≥6000 cycles	≥6000 cycles
Net Weight	~82kg	~201kg	~37 2kg	~542kg	~715kg	~886kg	-518kg -542kg
Dimensions (LWH)mm	442745133.5	442420597	442420944	4424201291	4424201634	4424201985	4424201039 4424201134
Cell Type	Lithium-iron phosphate (LiFePO)	Lithium-iron phosphate (LiFePO)	Lithium-iron phosphate (LiFePO)	Lithium-iron phosphate (LiFePO)	Lithium-iron phosphate (LiFePO)	Lithium-iron phosphate (LiFePO)	Lithium-iron phosphate (LiFePO)
Design Life	15 years	15 years	15 years	15 years	15 years	15 years	15 years
Charging Temperature	0 ~ 65°C	0 ~ 65°C	0 ~ 65°C	0 ~ 65°C	0 ~ 65°C	0 ~ 65°C	0 ~ 65°C
Discharging Temperature	-20 ~ 65°C	-20 ~ 65°C	-20 ~ 65°C	-20 ~ 65°C	-20 ~ 65°C	-20 ~ 65°C	-20 ~ 65°C
Relative Humidity	5% ~ 90%, No condensation	5% ~ 90%, No condensation	5% ~ 90%, No condensation	5% ~ 90%, No condensation	5% ~ 90%, No condensation	5% ~ 90%, No condensation	5% ~ 90%, No condensation
Install Altitude	≤ 3000m	≤ 3000m	≤ 3000m	≤ 3000m	≤ 3000m	≤ 3000m	≤ 3000m
Install Location	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor
Installation	Stack / Rack mounted	Stack / Rack mounted	Stack / Rack mounted	Stack / Rack mounted	Stack / Rack mounted	Stack / Rack mounted	Stack / Rack mounted
Certification	IEC62619/UN38.3/CE/CEC	IEC62619/UN38.3/CE/CEC	IEC62619/UN38.3/CE/CEC	IEC62619/UN38.3/CE/CEC	IEC62619/UN38.3/CE/CEC	IEC62619/UN38.3/CE/CEC	IEC62619/UN38.3/CE/CEC

100AH Stackable High Voltage System Application

The 100AH stackable high-voltage battery system is perfectly suited for a variety of applications from smart homes to remote telecom base stations with its flexible design. Designed for easy expansion, each modular unit connects seamlessly to create a customized mobile power source that meets your precise energy needs - whether you are using it to store solar energy, cope with power outages, or build a microgrid solution. Our high-voltage technology maximizes efficiency while minimizing space requirements, making it ideal for applications that balance performance and space usage. With built-in intelligent monitoring and military-grade security protection, this future-proof system can provide worry-free power for residential communities, retail stores, industrial equipment, and renewable energy projects.

TOU arbitrage for commercial users

PV farm storage support

Microgrid integration

EV showroom solar + storage + charging

Energy storage for mid-size factories/supermarkets

Lithium battery energy storage system assembly line with technicians operating equipment

Battery cabinet and inverter testing equipment in an automated energy storage production workshop

Modern lithium battery production line with automated manufacturing machines and testing area

Battery module welding and production machine for household energy storage systems

Technicians assembling lithium battery modules in a production line workshop

Real photos of Vanyo Energy lithium battery factory — energy storage production workshop

Energy storage system manufacturing workshop with precision assembly and testing equipment

Lithium battery automatic charging and cycling test equipment in quality inspection room

Lithium battery and ESS cabinet assembly area with advanced production tools and testing machines

Lithium battery pack calibration and lab-grade testing equipment for quality control

Lithium battery module sealing, inspection and automated testing tools inside factory

Factory Real Product Photos

Vanyo Container Energy Storage System Solution

Container Energy Storage

Vanyo Stacked Energy Storage Converter (PCS)

Energy Storage Converter

Internal View of Vanyo Energy Storage Battery Racks

Battery

Packaging Information

After multiple tests before leaving the factory, it is sent to all parts of the world.

Vanyo Battery Production Line Packaging Process

Automated Battery Packaging Conveyor Belt

Shipping Vanyo Battery Packages onto Truck with Forklift

Energy Storage System FAQ

Q1: Are you a manufacturer or trader of batteries/energy storage systems?

A: We are a manufacturer specializing in batteries/energy storage systems.

Q2: Do you provide system integration, EMS/energy management software, and ongoing upgrades and platform support?

A: We can provide system integration, EMS/energy management software, ongoing upgrades and platform support, as well as technical training.

Q3: How Long Is The Warranty?

A: Our warranty is from 5 years.

Q4: How Can We Guarantee Quality?

A: Always a pre-production sample before mass production; Always a final inspection before shipment.

Q5: How are payment methods, credit terms, and contract terms (division of liability, compensation for delayed delivery, force majeure) typically agreed upon?

A: You can discuss this with us in detail. We accept payment methods such as TT/LC/PayPal/DP/DA etc.
