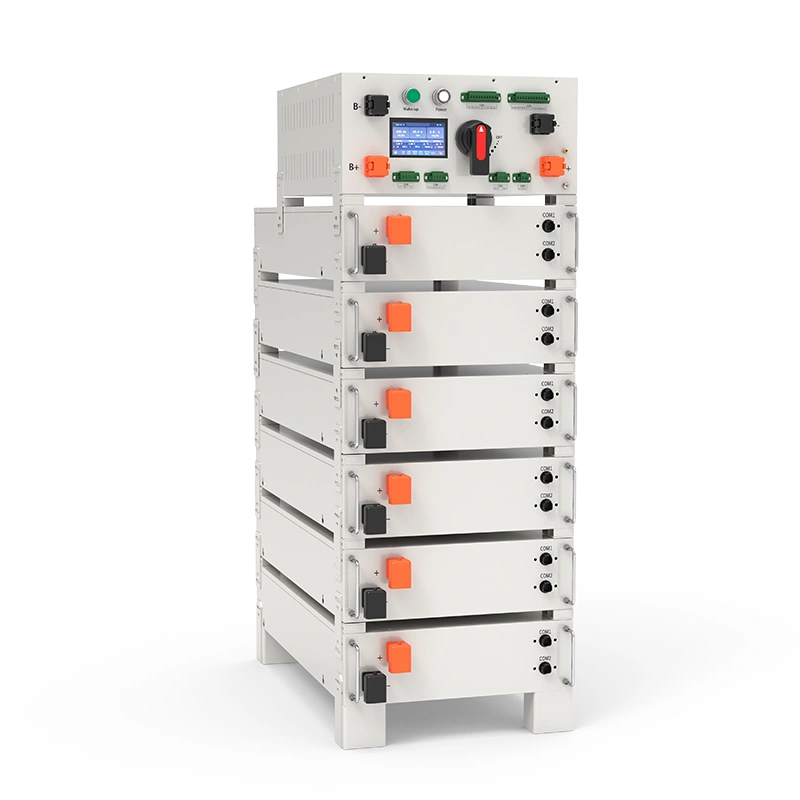

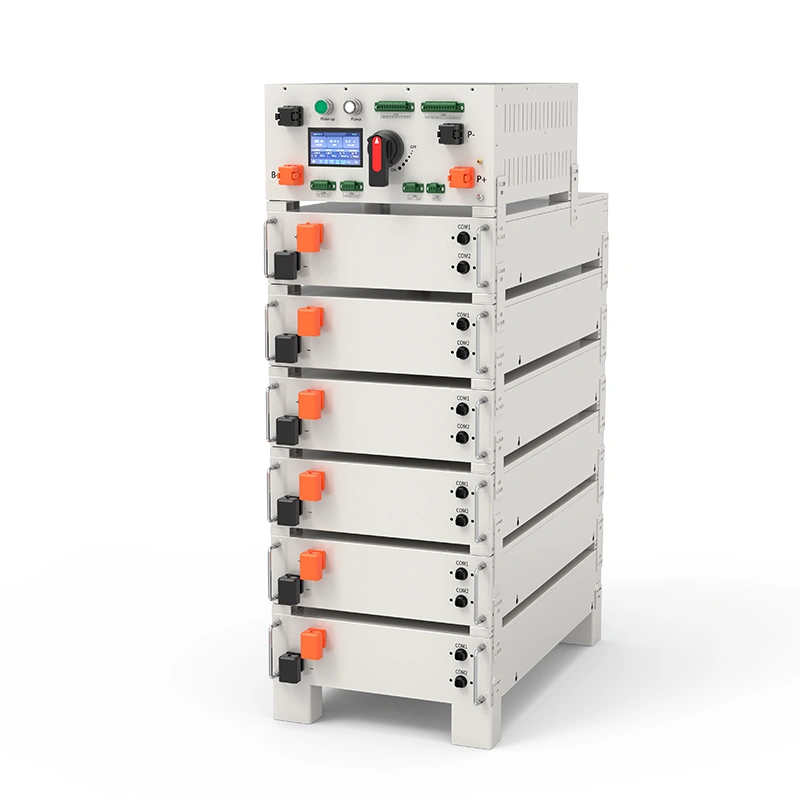

60kWh High-Voltage Commercial Energy Storage System
Battery Model：
WY-307.2V 200AH(3U)
Nominal Voltage：
307.2V
Nominal Capacity：
200A
Nominal Energy：
61.4KWH
Weight (KG)：
500.00
Dimenison(mm)：
442*745*1291
Product Features
- Convenience - Quick installation, standard 19-inch embedded design module, comfortable installation and maintenance.
- Environmentally Friendly - The entire module is non-toxic, pollution-free, and environmentally friendly.
- Safe and Reliable - Cathode material is made of LiFeP04, which has safety performance and long cycle life. It can last up to 6 months without charging and has no memory effect. It has excellent shallow charging and discharging performance.
- Flexible Configuration - Multiple battery modules can be connected in parallel to expand capacity and power. Support USB upgrade, WiFi upgrade (optional), remote upgrade (compatible with DeYe inverter).
- Intelligent BMS - It has protection functions such as over-discharge, over-charge, over-current, and over-high or low temperature. The system can automatically manage the charge and discharge states and balance the current and voltage of each cell.
- Wide Temperature Range - The working temperature range is -20°C to 55°C, with excellent discharge performance and cycle life.

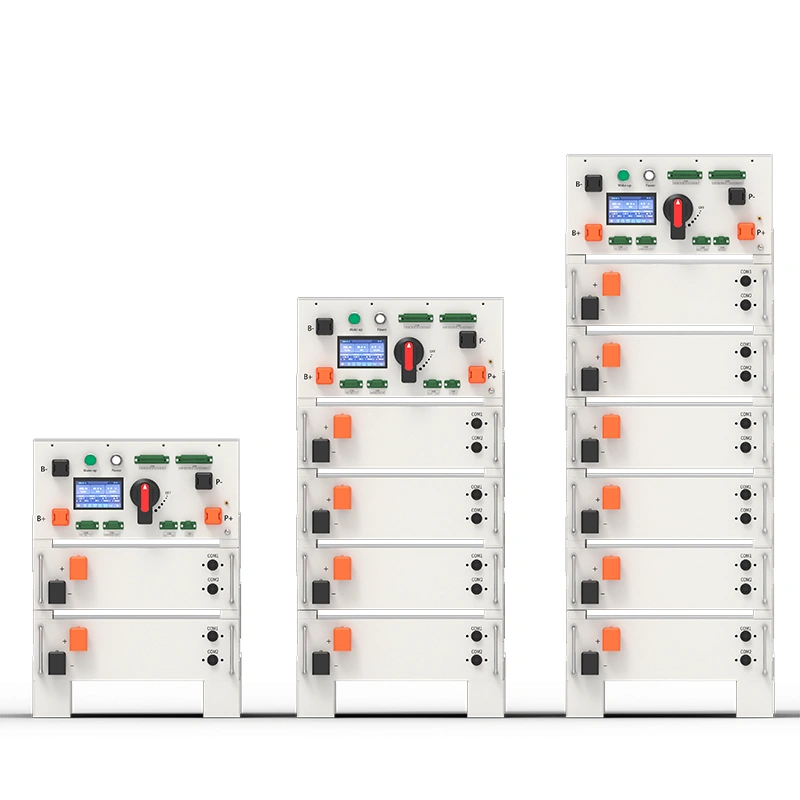

Product Models
| Model | WY-102.4V 200AH(3U) | WY-204.8V 200AH(3U) | WY-307.2V 200AH(3U) | WY-409.6V 200AH(3U) | WY-512V 200AH(3U) | WY-614.4V 200AH(3U) | |
| Nominal Voltage | 102.4V | 204.8V | 307.2V | 409.6V | 512V |
614.4V |
|
| Nominal Capacity | 200AH | 200AH | 200AH | 200AH | 200AH | 200AH | |
| Nominal Energy | 20.48KWH | 40.9KWH | 61.4KWH | 81.9KWH | 102.4KWH | 112.8KWH | |
| Max. Voltage Range | 86.4V ~ 115.2V | 172.8V ~ 230.4V | 259.2V ~ 345.6V | 345.6V ~ 460.8V | 432V ~ 576V | 518.4V ~ 691.2V | |
| Charge Voltage | 115.2V | 230.4V | 345.6V | 460.8V | 576V | 691.2V | |
| Undervoltage Protection | 86.4V | 172.8V | 259.2V | 345.6V | 432V | 518.4V | |
| Recommend Charge Current | 100A | 100A | 100A | 100A | 100A | 100A | |
| Recommend Discharge Current | 100A | 100A | 100A | 100A | 100A | 100A | |
| Max. Discharge Current | 200A | 200A | 200A | 200A | 200A | 200A | |
| Communication | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | |
| IP Rating | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | |
| Cycle Life | ≥6000 cycles | ≥6000 cycles | ≥6000 cycles | ≥6000 cycles | ≥6000 cycles | ≥6000 cycles | |
| Net Weight | ~201kg | ~37 2kg | ~542kg | ~715kg | ~886kg | -518kg -542kg |
|
| Dimensions (L*W*H)mm | 442*420*597 | 442*420*944 | 442*420*1291 | 442*420*1634 | 442*420*1985 |
442*420*1039 442*420*1134 |
|
| Cell Type | Lithium-iron phosphate (LiFePO) | Lithium-iron phosphate (LiFePO) | Lithium-iron phosphate (LiFePO) | Lithium-iron phosphate (LiFePO) | Lithium-iron phosphate (LiFePO) | Lithium-iron phosphate (LiFePO) | |
| Design Life | 15 years | 15 years | 15 years | 15 years | 15 years | 15 years | |
| Charging Temperature | 0 ~ 65°C | 0 ~ 65°C | 0 ~ 65°C | 0 ~ 65°C | 0 ~ 65°C | 0 ~ 65°C | |
| Discharging Temperature | -20 ~ 65°C | -20 ~ 65°C | -20 ~ 65°C | -20 ~ 65°C | -20 ~ 65°C | -20 ~ 65°C | |
| Relative Humidity | 5% ~ 90%, No condensation | 5% ~ 90%, No condensation | 5% ~ 90%, No condensation | 5% ~ 90%, No condensation | 5% ~ 90%, No condensation | 5% ~ 90%, No condensation | |
| Install Altitude | ≤ 3000m | ≤ 3000m | ≤ 3000m | ≤ 3000m | ≤ 3000m | ≤ 3000m | |
| Install Location | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | |
| Installation | Stack / Rack mounted | Stack / Rack mounted | Stack / Rack mounted | Stack / Rack mounted | Stack / Rack mounted | Stack / Rack mounted | |
| Certification | IEC62619/UN38.3/CE/CEC | IEC62619/UN38.3/CE/CEC | IEC62619/UN38.3/CE/CEC | IEC62619/UN38.3/CE/CEC | IEC62619/UN38.3/CE/CEC | IEC62619/UN38.3/CE/CEC | |
High-Voltage Energy Storage Application
The 100AH stackable high-voltage battery system is perfectly suited for a variety of applications from smart homes to remote telecom base stations with its flexible design. Designed for easy expansion, each modular unit connects seamlessly to create a customized mobile power source that meets your precise energy needs - whether you are using it to store solar energy, cope with power outages, or build a microgrid solution. Our high-voltage technology maximizes efficiency while minimizing space requirements, making it ideal for applications that balance performance and space usage. With built-in intelligent monitoring and military-grade security protection, this future-proof system can provide worry-free power for residential communities, retail stores, industrial equipment, and renewable energy projects.
TOU arbitrage for commercial users
PV farm storage support
Microgrid integration
EV showroom solar + storage + charging
Energy storage for mid-size factories/supermarkets
Factory Real Product Photos
Container Energy Storage
Energy Storage Converter
Battery
Packaging Information
After multiple tests before leaving the factory, it is sent to all parts of the world.
Energy Storage System FAQ
Q1: Are you a manufacturer or trader of batteries/energy storage systems?
A: We are a manufacturer specializing in batteries/energy storage systems.
Q2: Do you provide system integration, EMS/energy management software, and ongoing upgrades and platform support?
A: We can provide system integration, EMS/energy management software, ongoing upgrades and platform support, as well as technical training.
Q3: How Long Is The Warranty?
A: Our warranty is from 5 years.
Q4: How Can We Guarantee Quality?
A: Always a pre-production sample before mass production; Always a final inspection before shipment.
Q5: How are payment methods, credit terms, and contract terms (division of liability, compensation for delayed delivery, force majeure) typically agreed upon?
A: You can discuss this with us in detail. We accept payment methods such as TT/LC/PayPal/DP/DA etc.
