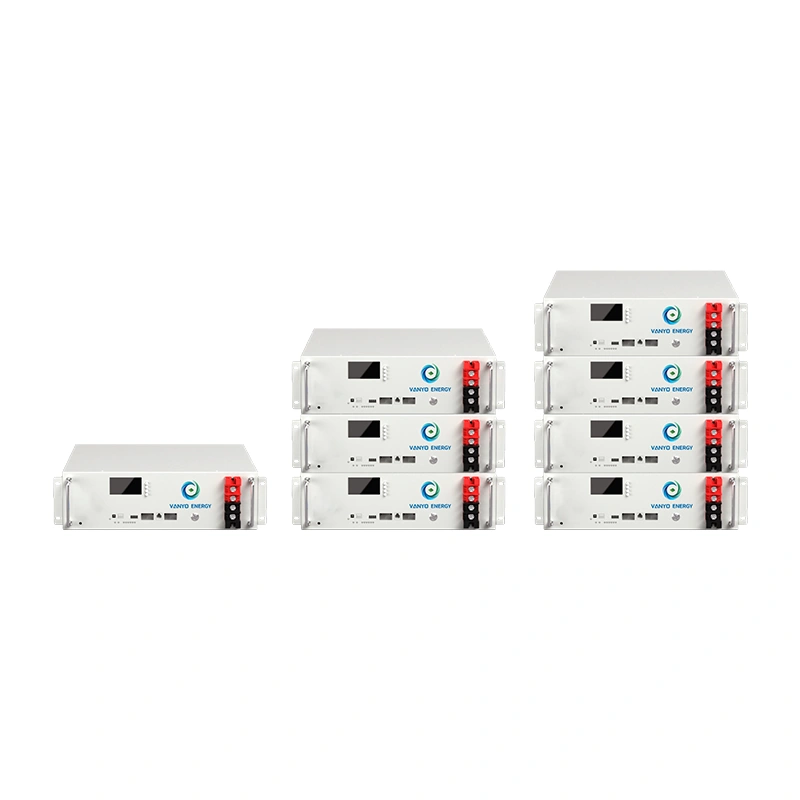

Stackable 51.2V 100Ah LiFePO4 Low Voltage Battery
Battery Model：
WY-51.2-100AH (3U)
Nominal Voltage：
51.2V
Nominal Capacity：
100AH
Nominal Energy：
5.12KWH
Weight (KG)：
44.00
Dimenison(mm)：
442*420*133.5
Product Features
- Convenient - Quick installation, standard of 19-inch embedded designed module is comfortable for installationand maintenance.
- Eco-Friendly - The whole module is non-toxic, non-polluting and environmentally friendly.
- Intelligent BMS - It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature.The system can automatically manage charge and discharge state and balance current and voltage of each cell.
- Safe and Reliable - Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
- Flexible Configuration - Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade,wifi upgrade(optional), remote upgrade(Compatible with Deye inverter).
- Wide Temperature - Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.
Product Models
| Model | WY-51.2-100AH (3U) | WY-51.2-200AH (3U) | |
| Nominal Voltage | 51.2V | ||
| Nominal Capacity | 100AH | 200AH | |
| Nominal Energy |
5.12KWh |
10.24KWh |
|
| Max. Voltage Range |
43.2V-57.6V | ||
| Charge Voltage (Overvoltage protection) |
57.6V | ||
| Undervoltage Protection |
43.2V | ||
| Recommend Charge Current | 50A | 100A | |
| Max. Discharge Current | 100A | 200A | |
| BMS Communication | RS485/CAN | ||
| Configuration | 16S-1P | ||
| Cell Type | 3.2V/100AH (LiFePO4) | ||
| Design Life | 15 Years | ||
| Cycle Life | ≥6000 cycles | ||
| Charging Efficiency | 98% | ||
| Charging Temperature | 0℃~55℃ | ||
| Discharging Temperature | -10℃~55℃ | ||
| Storage Temperature | -20℃~65℃ | ||
| Relative Humidity | 5%~90%, No condensation | ||
| Install Location | Indoor | ||
| Installation | Stack/ Rack mounted | ||
| Dimensions (L*W*H)mm |
442*420*133.5 | 442*745*133.5 | |
| Weight (KG) | 40 | 82 | |
200AH Stackable Low-Voltage System Application
Our 200Ah stackable low-voltage energy storage system delivers flexible, scalable power for diverse applications, including multi-story residences, data communication infrastructure, small wind-solar hybrid projects, retail shops, and mobile power vehicles. Featuring intelligent battery management, seamless capacity expansion, and ultra-safe LFP chemistry, this modular solution ensures reliable performance across both grid-tied and off-grid environments while optimizing energy efficiency.
Multi-Family Housing / Small Community
Shops, Clinics, Classrooms
Backup For Telecom
Small Wind-Solar Hybrid Systems
Mobile Power Vehicles
Factory Real Product Photos
Container Energy Storage
Energy Storage Converter
Battery
Packaging Information
After multiple tests before leaving the factory, it is sent to all parts of the world.
Energy Storage System FAQ
Q1: Are you a manufacturer or trader of batteries/energy storage systems?
A: We are a manufacturer specializing in batteries/energy storage systems.
Q2: Do you provide system integration, EMS/energy management software, and ongoing upgrades and platform support?
A: We can provide system integration, EMS/energy management software, ongoing upgrades and platform support, as well as technical training.
Q3: How Long Is The Warranty?
A: Our warranty is from 5 years.
Q4: How Can We Guarantee Quality?
A: Always a pre-production sample before mass production; Always a final inspection before shipment.
Q5: How are payment methods, credit terms, and contract terms (division of liability, compensation for delayed delivery, force majeure) typically agreed upon?
A: You can discuss this with us in detail. We accept payment methods such as TT/LC/PayPal/DP/DA etc.
