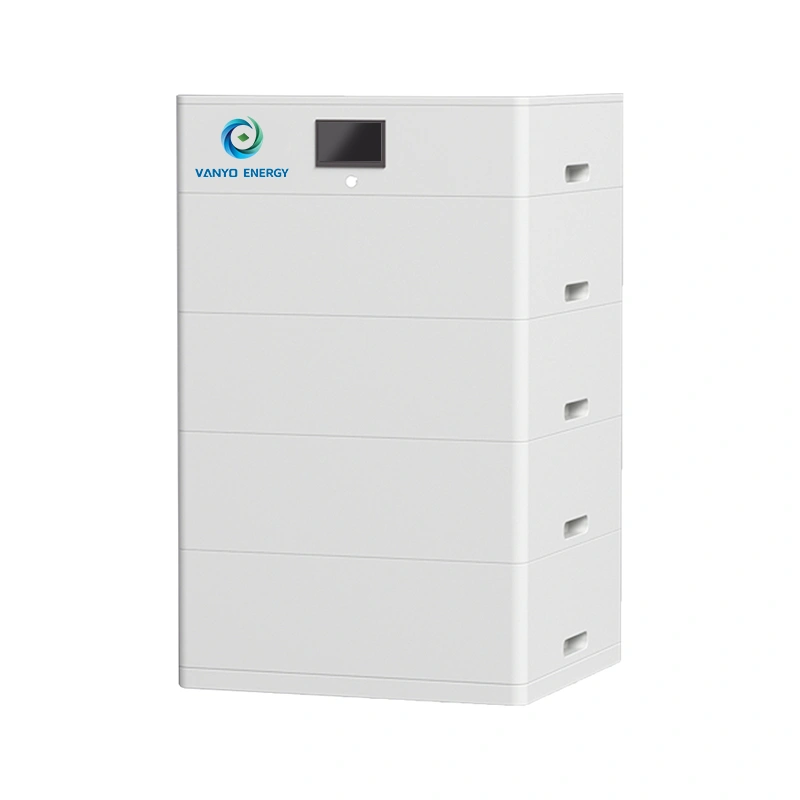

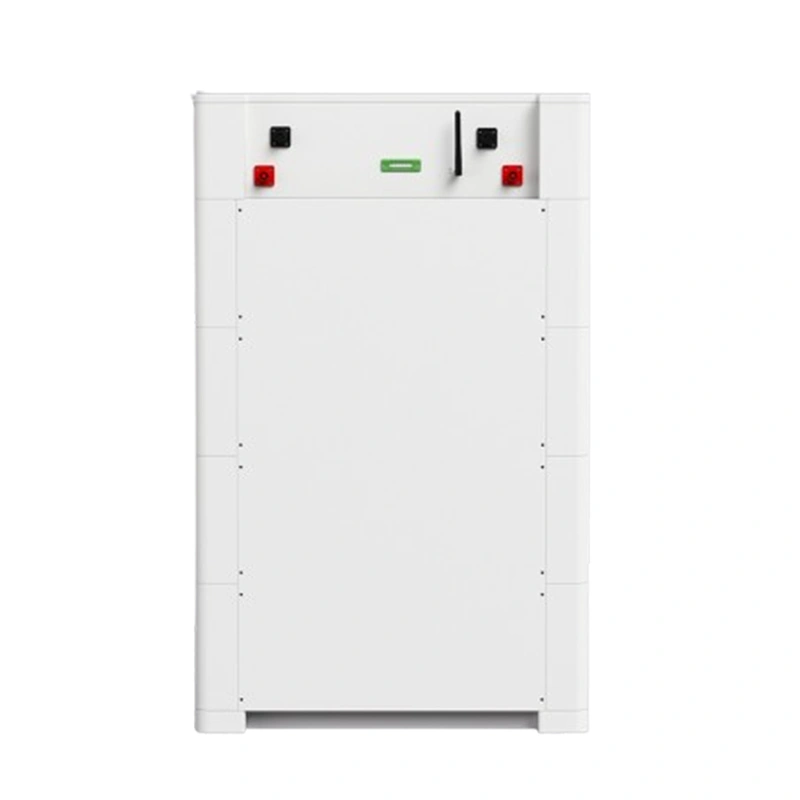

Innovative High-Voltage Energy Storage Systems Manufacturer
Battery Model：
WY51.2 - 100
Rated Voltage：
51.2V
Discharge Cutoff Voltage：
44.8V
Rated Charging Current：
100A
Weight (KG)：
43.00
Dimenison(mm)：
542*500*275

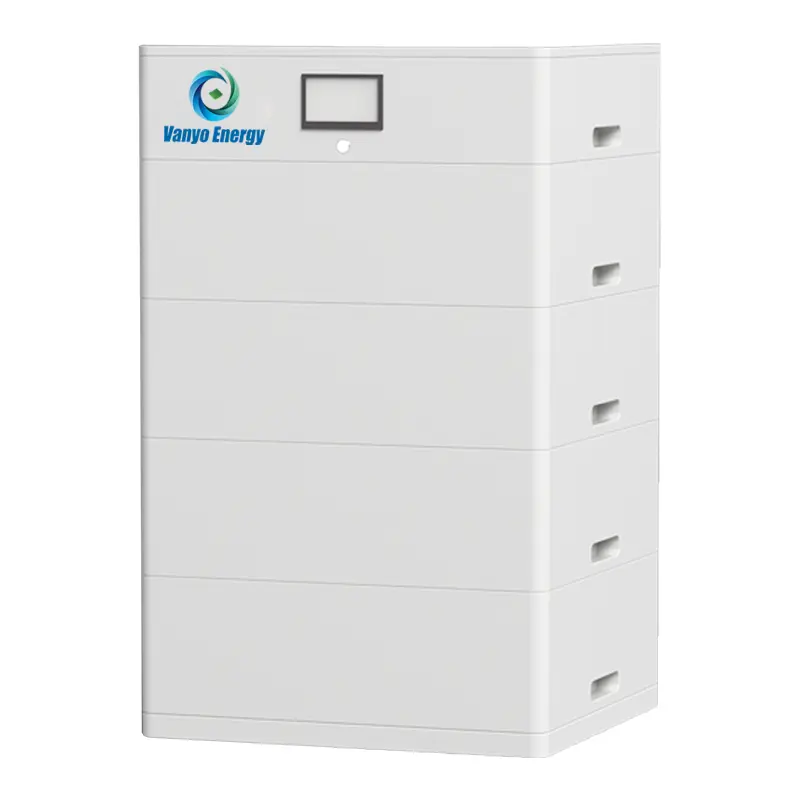

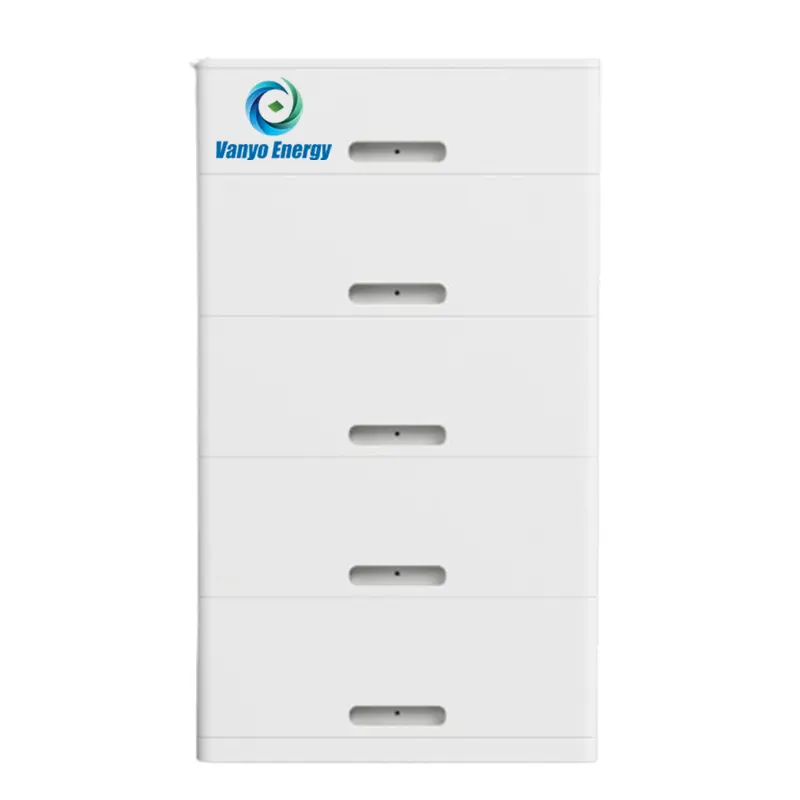

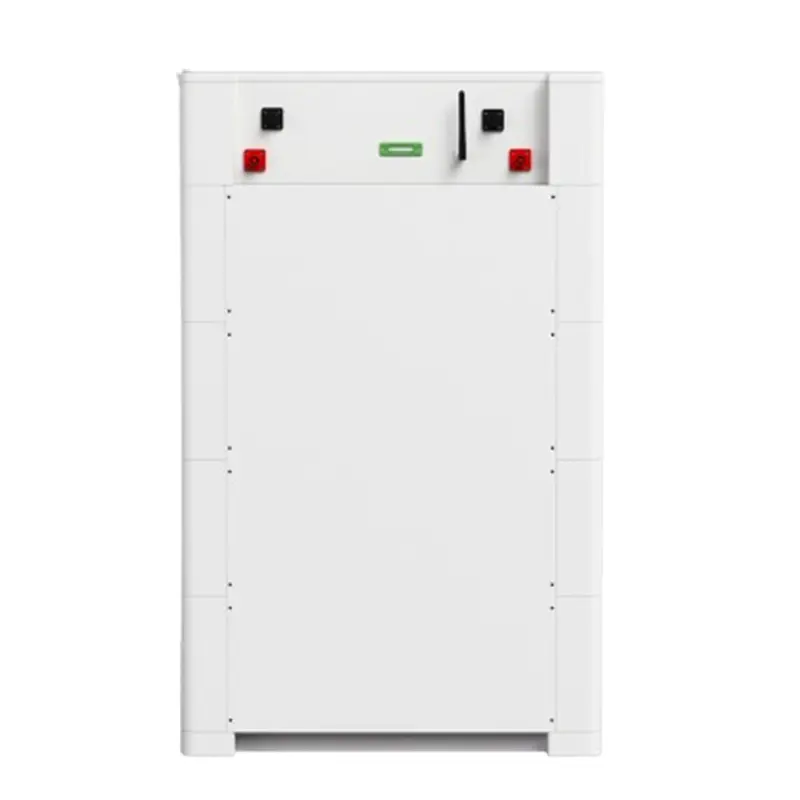

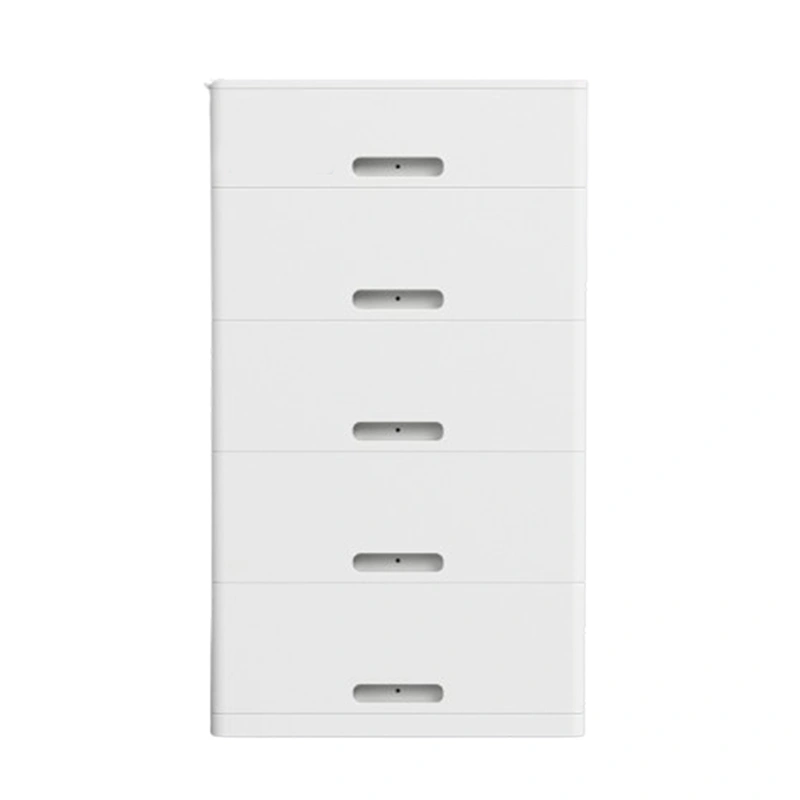

Product Features
- Modular Design and Management - Up to 16 modules can be connected in series, each with independent management and operation, enhancing safety and fault isolation.
- Safe and Durable - Features a bottom pulley, manual switch, and visual monitoring interface. Rigorous testing ensures the consistency and longevity of battery cells.
- Advanced Protection Technology: Nano-coating on the surface enhances corrosion resistance and thermal stability; the latest self-healing technology is incorporated within the machine to extend service life; and LPF (Lithium Protection Firewall) channels act as an additional safety barrier to prevent thermal runaway.

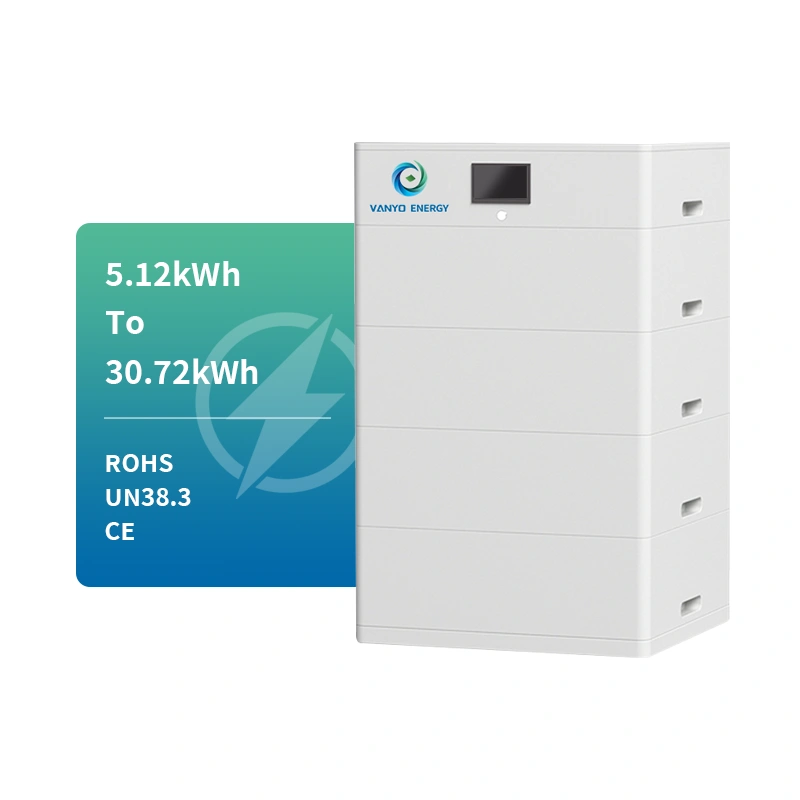

Product Models
| Model | WY51.2V-100 | WY102.4-100 | WY153.6-100 | WY204.8-100 | WY256-100 | WY307.2-100 | |
| Energy | 5.12KWH | 10.24KWH | 15.36KWH | 20.48KWH | 25.6KWH | 30.72KWH | |
| Cell Unit | 100AH | 100AH | 100AH | 100AH | 100AH | 100AH | |
| Configuration | 16s-1p | 16s-2p | 16s-3p | 16s-4p | 16s-5p | 16s-6p | |
| Rated Voltage | 51.2V | 102.4V | 153.6V | 204.8V | 256V | 307.2V | |
| Charge Cutoff Voltage | 58.4V | 116.8V | 175.2V | 233.6V | 292V | 350.4V | |
| Discharge Cutoff Voltage | 44.8V | 89.6V | 134.4V | 179.2V | 224V | 268.8V | |
| Dimensions (L*W*H)mm | 542*500*275 | 542*500*450 | 542*500*625 | 542*500*800 | 542*500*975 | 542*500*1150 | |
| Weight(kg) | 58 | 100 | 145 | 187 | 230 | 273 | |
| Rated Charging Current | 100A | 100A | 100A | 100A | 100A | 100A | |
| Rated Discharge Current | 200A | 200A | 200A | 200A | 200A | 200A | |
| Modules Connection | Maximum 16 in Series | Maximum 16 in Series | Maximum 16 in Series | Maximum 16 in Series | Maximum 16 in Series | Maximum 16 in Series | |
| BMS Communication | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | |
| Life Time(25° c) | 15 years | 15 years | 15 years | 15 years | 15 years | 15 years | |
| Life Cycles(80% D0D, 25°C) | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles | |
| Charging Efficiency | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | |
| Electricity Charged in the Shipped Product | 30%-50% SOC | 30%-50% SOC | 30%-50% SOC | 30%-50% SOC | 30%-50% SOC | 30%-50% SOC | |
| Operating Temperature |
Charging: 0~55℃ Discharge: -10-55℃ |
Charging: 0~55℃ Discharge: -10-55℃ |
Charging: 0~55℃ Discharge: -10-55℃ |
Charging: 0~55℃ Discharge: -10-55℃ |
Charging: 0~55℃ Discharge: -10-55℃ |
Charging: 0~55℃ Discharge: -10-55℃ |
|
| Storage Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | |
High-Voltage Accumulation System Application

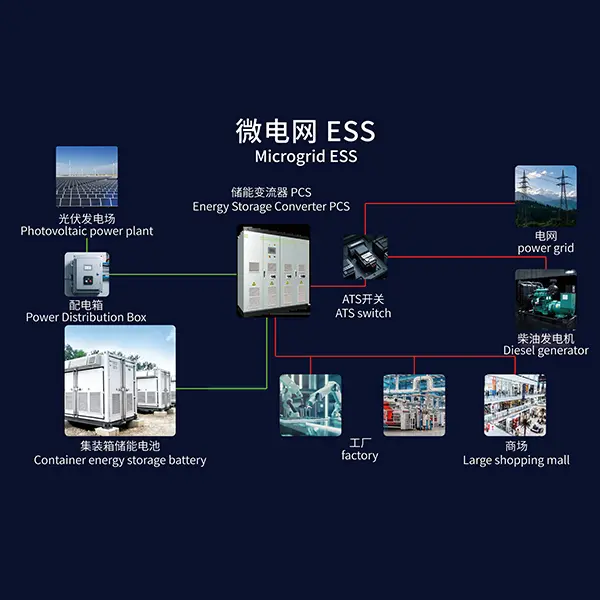

High-voltage energy storage enables efficient, large-scale energy storage and discharge, stabilizing grid operations. It supports seamless microgrid integration, improving renewable energy utilization and grid resilience. For commercial users, it offers effective time-of-use (TOU) arbitrage, reducing electricity costs by storing energy during periods of low electricity prices and discharging it during peak demand periods. Furthermore, it can serve as a reliable energy storage system for medium-sized factories and supermarkets, ensuring uninterrupted power supply and load management. This system also provides critical support for energy storage in photovoltaic power plants, mitigating solar intermittency and maximizing renewable energy output.
High-voltage accumulation
Microgrid integration
TOU arbitrage for commercial users
Energy storage for mid-size factories/supermarkets
PV farm storage support
Factory Real Product Photos
Container Energy Storage
Energy Storage Converter
Battery
Packaging Information
After multiple tests before leaving the factory, it is sent to all parts of the world.
Energy Storage System FAQ
Q1: Are you a manufacturer or trader of batteries/energy storage systems?
A: We are a manufacturer specializing in batteries/energy storage systems.
Q2: Do you provide system integration, EMS/energy management software, and ongoing upgrades and platform support?
A: We can provide system integration, EMS/energy management software, ongoing upgrades and platform support, as well as technical training.
Q3: How Long Is The Warranty?
A: Our warranty is from 5 years.
Q4: How Can We Guarantee Quality?
A: Always a pre-production sample before mass production; Always a final inspection before shipment.
Q5: How are payment methods, credit terms, and contract terms (division of liability, compensation for delayed delivery, force majeure) typically agreed upon?
A: You can discuss this with us in detail. We accept payment methods such as TT/LC/PayPal/DP/DA etc.
