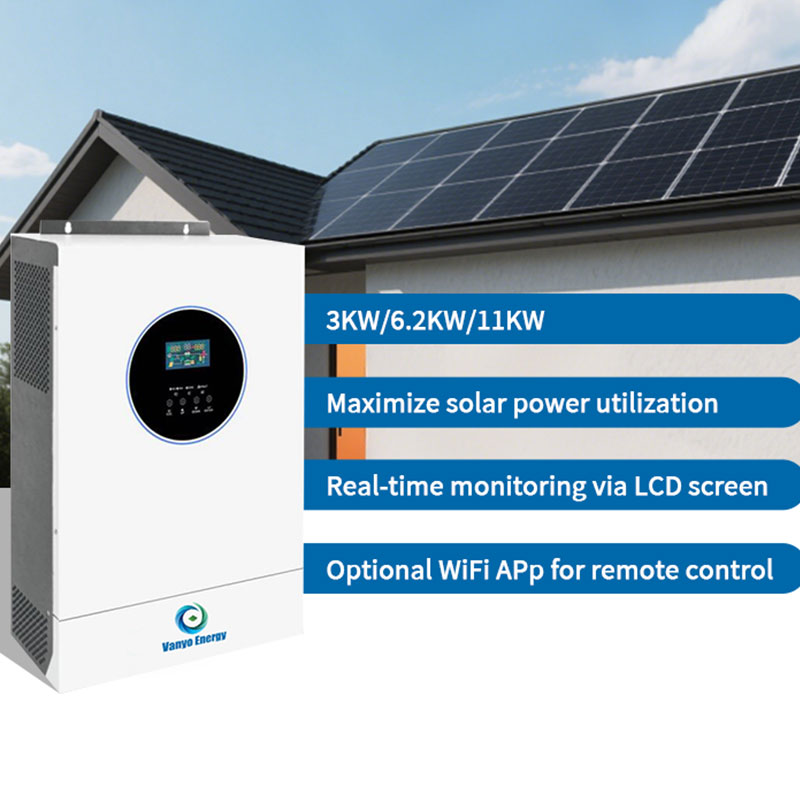

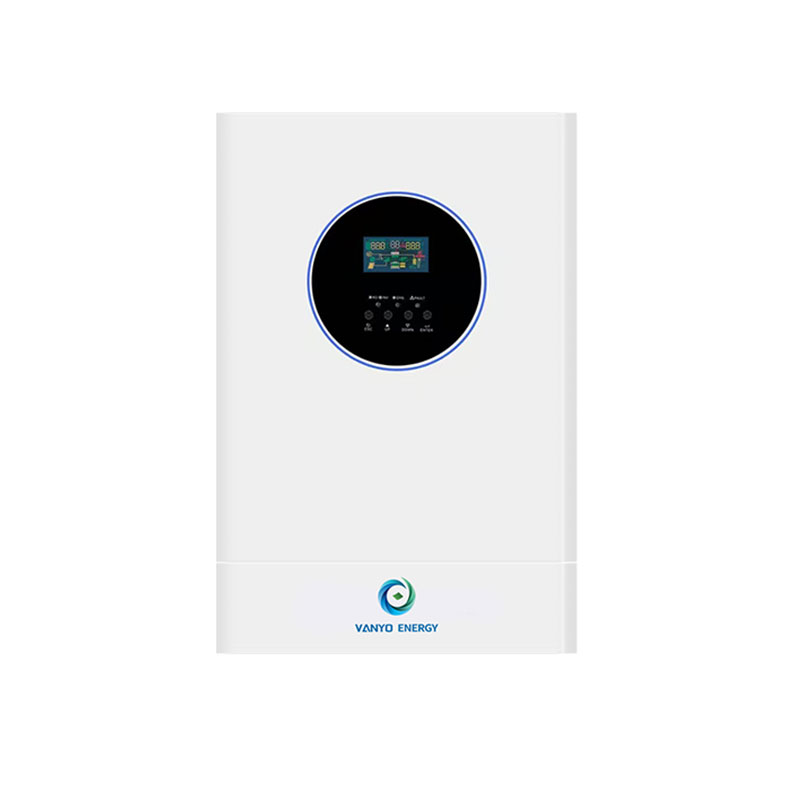

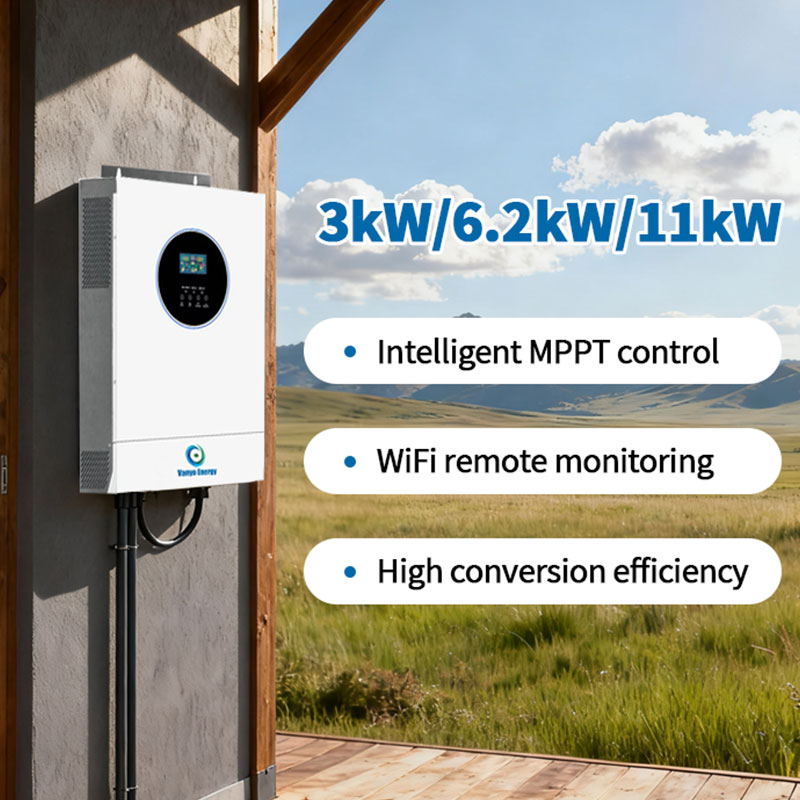

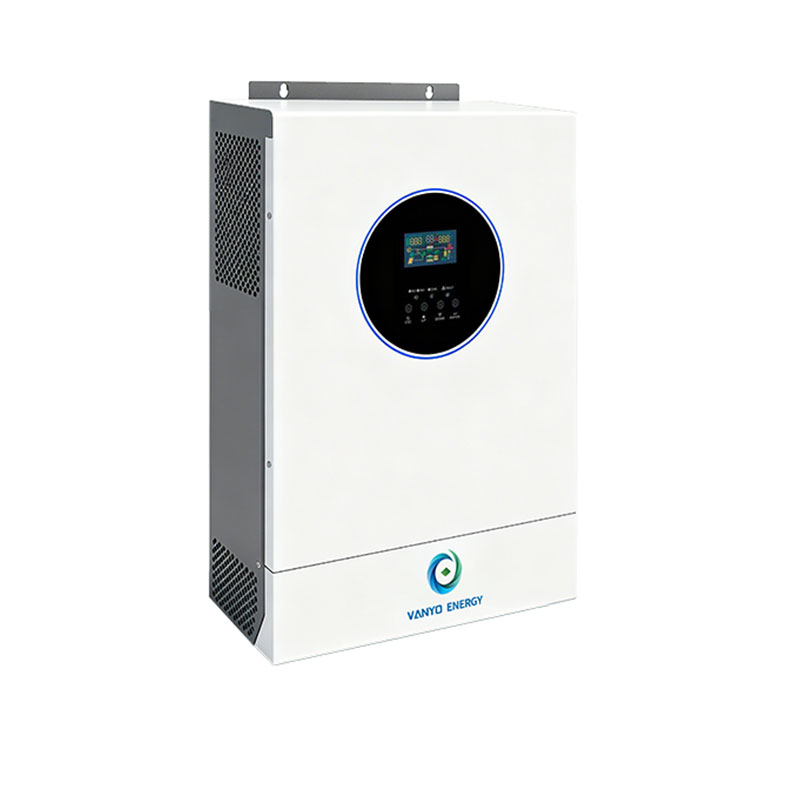

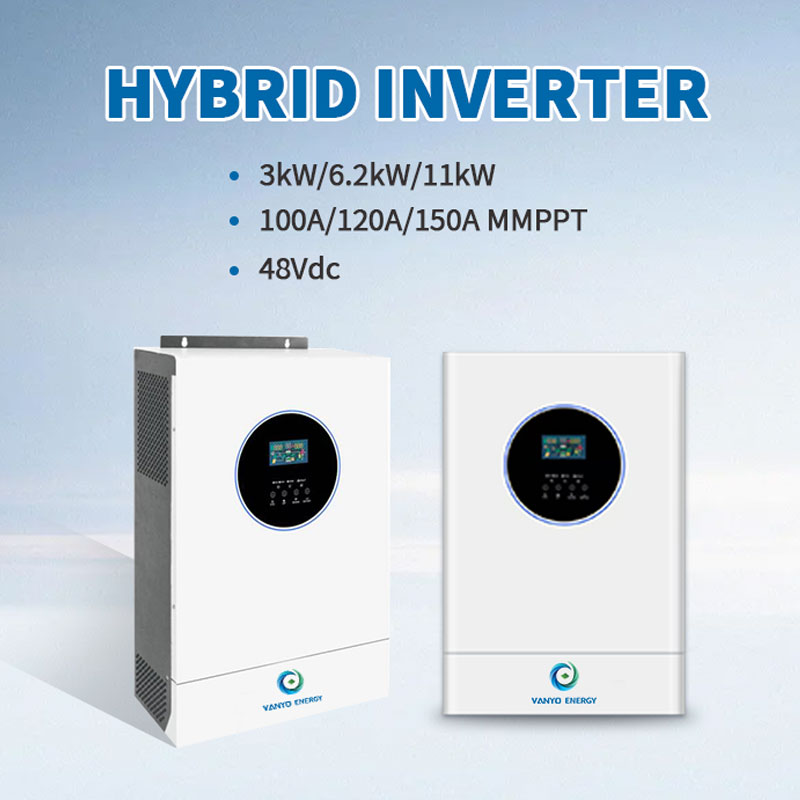

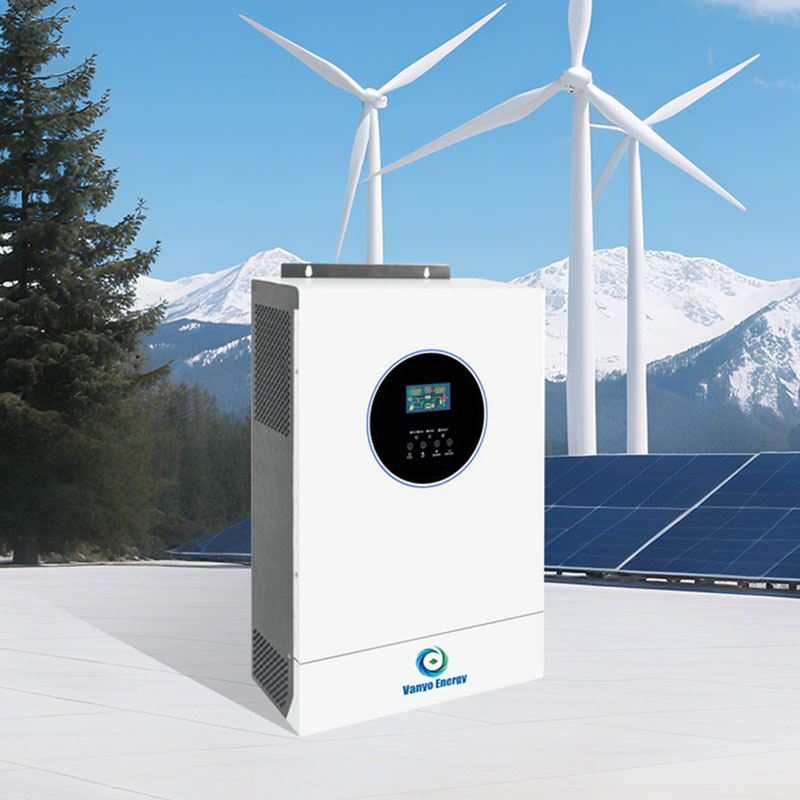

3kw 6kw 11kw Pure Sine Wave Solar Inverter
Model：
3kw, 6kw, 11kw
Rated Capacity：
6200W
Input Voltage：
220/230/240Vac
Output：
Pure Sine Wave
Product Features
- Utility charging Voltage/Pv charging Voltage Adjustable.Match Different Battery Charging Requirements.

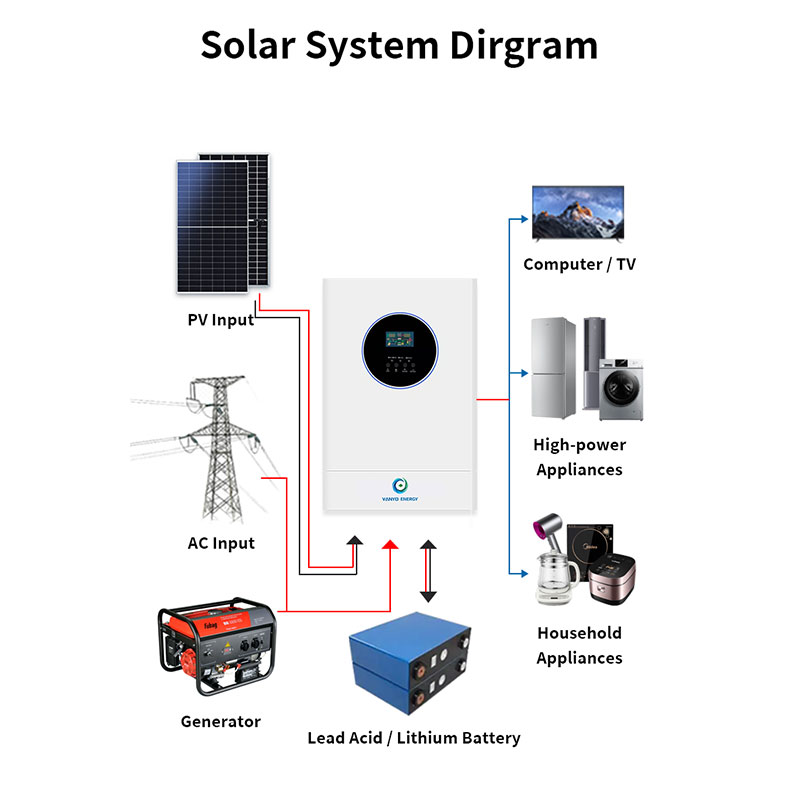

- Intelligent Power Supply Mode, intelligent Distribution of solarPanel/Mains/BatteryPower shares.
- Support Working without Battery.
- Support connection of multiple types of energy storage batteries, including lead-acid batteries and lithium-ion batteries.
- Communication Option: External wlFl, supervise at Any Time.
- LCD large screen dynamic flow chart design, easy to understand the system data and running state.
- 360-degree protection with complete short-circuit protection, over-current protection, over-under-voltage protection, over-load protection and other functions.
- Stable performance,Security and Reliable,long service life.
- Pure sinusoidal output, strong load capacity, low noise, high conversion efficiency.
- With its own BMS communication function, no additional cost. Communicate with BMS board using 485; compatible generator self-start, RS232 communication and WIFI.
Product Models
| Model | 3000W-EA3024EMH | 6200W-EA6248EMH | 11000W-EA11048EMH | ||
| Rated input voltage | 220/230/240VAC | ||||
| Voltage range | 90-280VAC
±3V(normal mode)170-280VAC±3V(UPS mode) |
||||
| Frequency range | 50Hz/60Hz(Adaptive) | ||||
| OUTPUT | |||||
| Battery Inverter | 3000W | 6200W | 11000W | ||
| Photovoltaic Inverter | 3000W | 6500W | 11000W | ||
| Output voltage | 220/230/240VAC±5% | ||||
| Output frequency | 50/60Hz±0.1% | ||||
| Waveform | pure Sine Wave | ||||
| Overload capacity |
Battery Mode:11s@105%~150%Load; 2s@150%~200%Load; 400ms@>200%Load |
||||
| GRID-CONNECTED OPERATION | |||||
| Output voltage | No gid connection | 220/230/240VAC | |||
| Grid feeding voltage range | 195-253VA | ||||
| Grid feeding frequency range | 49-51±1 Hz/59-61±1Hz | ||||
| Nominal output current | 26.9A | 47.8A | |||
| Power factor range | >0.99 | ||||
| Maximum conversion efficiency(DC/AC) | 98% | ||||
| PVCHARGER | |||||
| PV charging method | MPPT | MPPT | Dual MPPT | ||
| Maximum input power of PV | 3000W | 7500W | 2x5500W | ||
| MPPT input voltage range | 40~500Vdc | 60~500Vdc | 90~500Vdc | ||
| Maximum PV charging cu rrent | 100A | 120A | 150A | ||
| Maximum mains charging current | 60A | 100A | 150A | ||
| Maximum charging current | 100A | 120A | 150A | ||
| INTERFACE | |||||
| RS232 | Baud rate 2400 | ||||
| Expansion slot communication interface | Lithium battery BMS communication card,WIFI card, dry contact card,etc. | ||||
| Maximum charging continuous current | No parallel function | Parallel interface | |||
| Storage temperature | -15°C~+60°C | ||||
| Noise | ≤45dB | ||||
| Depth*width*height(mm) | 403*304 *114mm | 433*330*138mm | 601 *360*163.5mm | ||
| Standards and certifications | EN-IEC60335-1,EN-IEC 60335-2-29,IEC62109-1 | ||||
Pure Sine Wave Solar Inverter Application
Residential solar energy storage for home users, reliable backup power for homes and offices, and scalable commercial and industrial uses for businesses. We also support telecommunications and remote monitoring systems, ensure uninterrupted connectivity, and contribute to sustainable microgrids and renewable energy projects. Our technology excels in high temperature environments and is ideal for mobile and off-grid applications, providing versatile, reliable power solutions wherever they are needed.
Detached Homes / Apartment PV+ESS
Off-grid Power (Farms, Homestays)
Backup for Small Monitoring Systems
Power for Kiosks/Convenience Stores
Residential PV + Storage
Energy Storage System FAQ
Q1: Are you a manufacturer or trader of batteries/energy storage systems?
A: We are a manufacturer specializing in batteries/energy storage systems.
Q2: Do you provide system integration, EMS/energy management software, and ongoing upgrades and platform support?
A: We can provide system integration, EMS/energy management software, ongoing upgrades and platform support, as well as technical training.
Q3: How Long Is The Warranty?
A: Our warranty is from 5 years.
Q4: How Can We Guarantee Quality?
A: Always a pre-production sample before mass production; Always a final inspection before shipment.
Q5: How are payment methods, credit terms, and contract terms (division of liability, compensation for delayed delivery, force majeure) typically agreed upon?
A: You can discuss this with us in detail. We accept payment methods such as TT/LC/PayPal/DP/DA etc.
Address: Wanyang Gold and Silver Building 6, Circular Economy Park, Sili Town, Jiyuan City, Henan Province, China
