As electricity prices rise and grid outages become more common, a 3kW hybrid solar inverter is becoming a practical choice for home and small commercial energy storage systems. The Vanyo Energy 3000W-EA3024EMH combines solar inversion, AC charging, and battery management in one unit, helping users maximize self-consumption and maintain reliable backup power when the grid fails.

What Is a 3kW Hybrid Solar Inverter?

A hybrid inverter combines the functions of a grid-tied inverter and an off-grid inverter. It can connect to solar panels, batteries, the utility grid, and loads at the same time. The 3kW power class is suitable for small-to-medium household daytime loads and critical backup loads. The Vanyo Energy 3kW hybrid inverter uses pure sine wave output, making it compatible with sensitive electronics such as TVs, computers, routers, and medical devices.

Key Features of the Vanyo Energy 3kW Hybrid Inverter

Intelligent Energy Management

The inverter allows independent adjustment of AC charging voltage and PV charging voltage, so users can flexibly configure charging parameters based on battery type and power demand. Its intelligent energy management mode automatically distributes power among solar, grid, and battery to maximize energy utilization.

Multi-Battery Compatibility & BMS Communication

The product supports lead-acid and lithium-ion batteries. With built-in BMS communication, it can communicate directly with the battery management system via a 485 interface, eliminating the need for an extra communication module and reducing system integration costs.

No-Battery Operation Mode

When no battery is connected or the battery is depleted, the inverter can still supply power from solar or the utility grid, improving system availability in emergency scenarios.

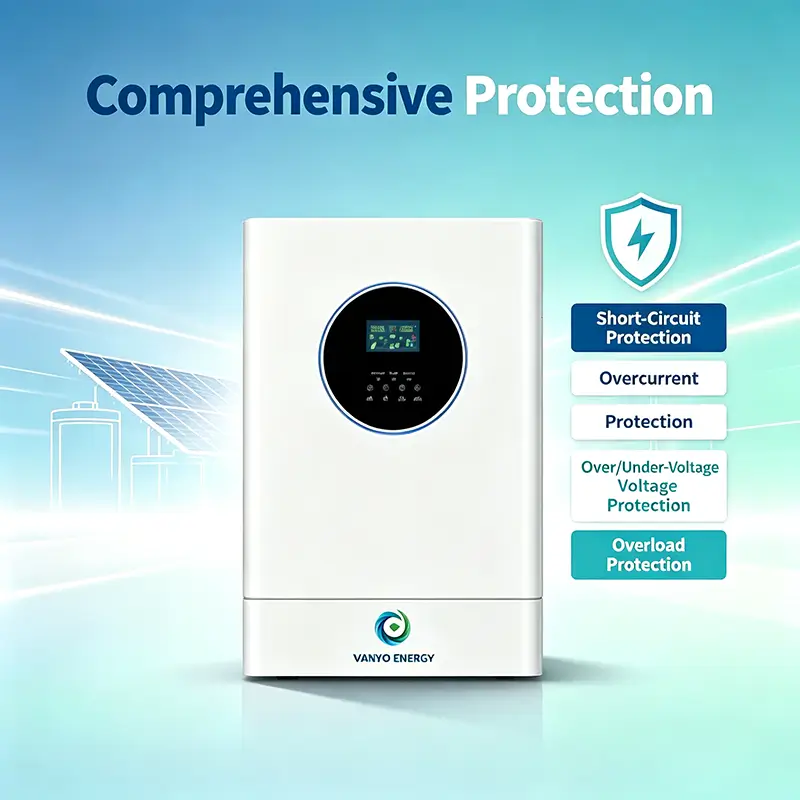

Comprehensive Protection

The inverter offers multi-layer protection, including short-circuit protection, overcurrent protection, over/under-voltage protection, and overload protection. In battery mode, it can run at 105%–150% load for 11 seconds, 150%–200% load for 2 seconds, and above 200% load for 400 milliseconds, providing a sufficient buffer for load fluctuations.

Smart Monitoring & Remote Management

It features a large LCD screen with a dynamic flow chart design, clearly displaying system data and operating status. External Wi-Fi connection is supported, allowing users to monitor the system in real time on mobile devices. It is also compatible with generator auto-start, RS232 communication, and Wi-Fi expansion.

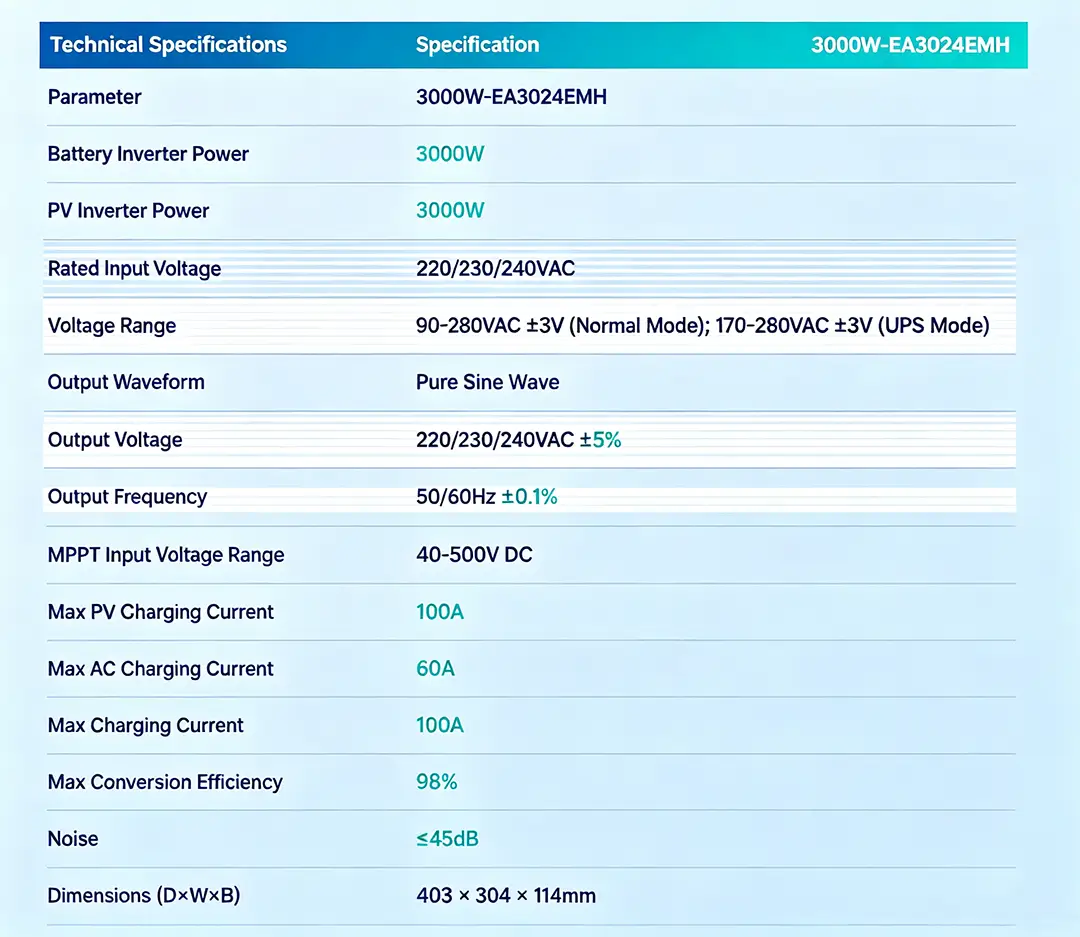

Technical Specifications

Applications

• Residential solar energy storage systems
• Reliable backup power for homes and small shops in areas with unstable grids
• Office backup power, telecom base stations, and remote monitoring systems
• Small microgrids and renewable energy projects
• Mobile and off-grid applications

The product has passed international standards such as EN IEC 60335-1, EN IEC 60335-2-29, and IEC 62109-1, and performs well in high-temperature environments.

FAQ

Q1: What appliances can a 3kW hybrid inverter run?
A: It is suitable for lighting, TVs, computers, routers, refrigerators, fans, and similar loads. The total power should generally not exceed 3000W. Appliances with high starting power require additional margin.

Q2: Does it support lithium batteries?
A: Yes. It supports both lead-acid and lithium-ion batteries and can communicate with the BMS via a 485 interface.

Q3: Can it work without a battery?
A: Yes. When no battery is connected or the battery is depleted, solar or utility power can still supply the load.

Q4: What is the maximum charging current?
A: The maximum PV charging current is 100A, the maximum AC charging current is 60A, and the maximum charging current is 100A.

Q5: What is the conversion efficiency?
A: The maximum conversion efficiency is up to 98%.

Q6: Is it suitable for off-grid and backup power?
A: Yes. It is designed for hybrid, off-grid, and backup power applications.

Q7: What certifications does it have?
A: It has passed standards such as EN IEC 60335-1, EN IEC 60335-2-29, and IEC 62109-1. Confirm current certificate status with the factory.

Q8: Can I get OEM/ODM or customized solutions?
A: Yes. Vanyo Energy offers flexible customization and OEM/ODM support for hybrid solar inverter projects.

Why Choose Vanyo Energy as Your Hybrid Solar Inverter Manufacturer?

Vanyo Energy focuses on the research, development, and manufacturing of hybrid solar inverters. Our products cover home energy storage, off-grid backup, and small commercial applications. We provide a stable supply chain, flexible customization, and professional technical support to help customers deploy efficient and reliable solar energy storage systems.

Contact us today to get a quote for the 3kW hybrid solar inverter or request a customized solution.
